简介

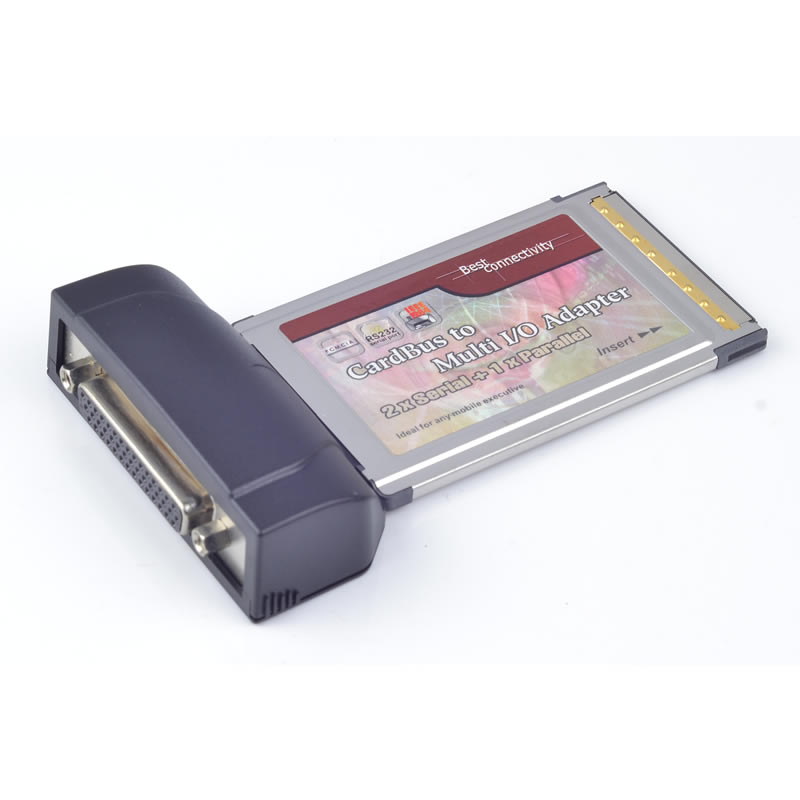

This PCMCIA CardBus I/O card is compliant with 32-Bit CardBus PC Card Type II standard, and is designed for use on any notebook with PCMCIA CardBus slot, end-user can easily add serial and/or parallel port to the notebook PC for connecting with any standard serial/parallel devices. This product offers superior performance and unmatched data transfer rates, ideal for SOHO users and industrial applications.

功能参数 & Specification

通用参数
            Compliant with 32-Bit CardBus PC Card Type II standard
            Hot Plug and Plug-&-Play compatibility
            Supports Windows 2000, Server 2003 32/64-bit, XP 32/64-bit, Vista 32/64-bit and Linux


串口界面
            符合工业标准 16C550 UART
            Automated hardware / software flow control available
            Supports serial data transfer rate of up to 115.2Kbps
            Supports 5-, 6-, 7-, 8-bit data framing
            Supports even, odd, no parity, or force parity generations
           支持1或2停止位
            16-byte receive and transmit FIFO to reduce CPU overhead

Parallel Port (IEEE1284) interface
            Supports IEEE 1284 SPP, PS2, EPP and ECP modes
            Data transfer rate up to 1.5MBps
            16-byte First-In-First-Out (FIFO) buffer

Remarks

            Fan-out cable required

包装明细

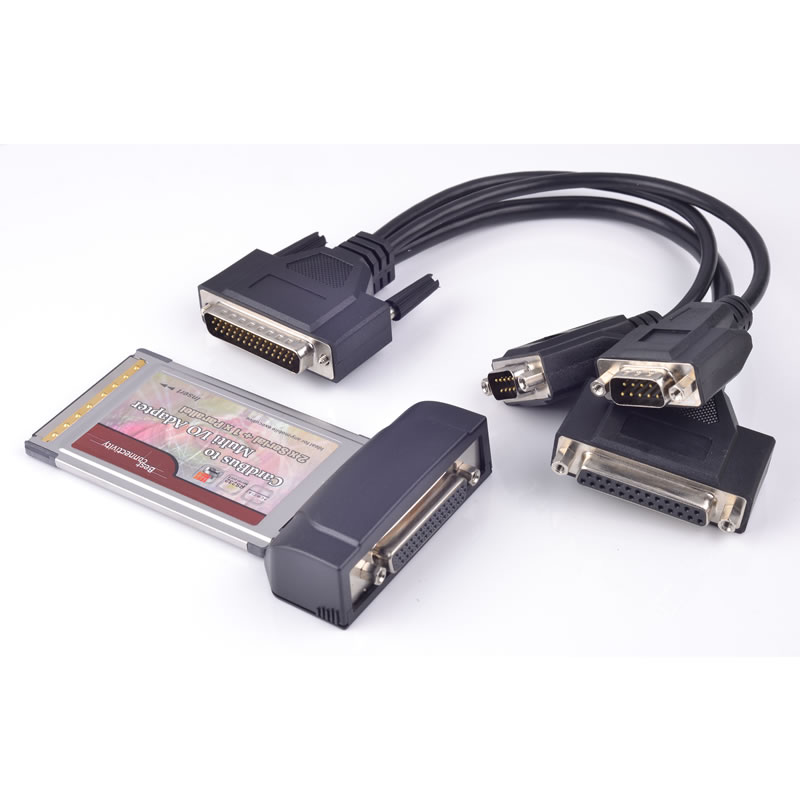

            PCMCIA CardBus I/O card x 1
            Fan-out cable x 1
            说明书
            驱动光盘 x 1
